INTEGRATIONS
Level up your workflow

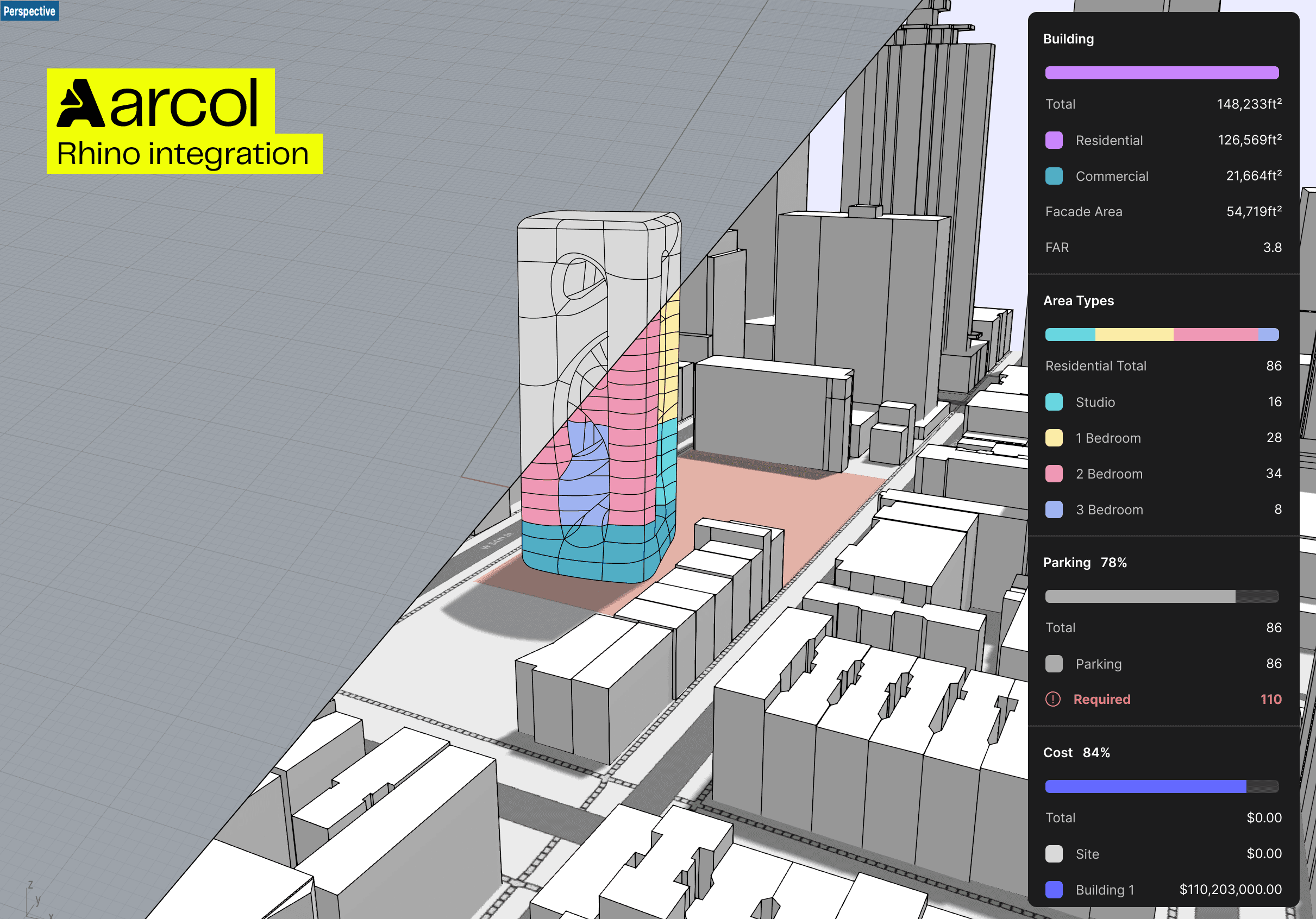

Your Rhino model, completed
Stream your Rhino model into Arcol and get floor plans, real-time metrics, and presentation-ready output — all connected, all live, all without a single script.

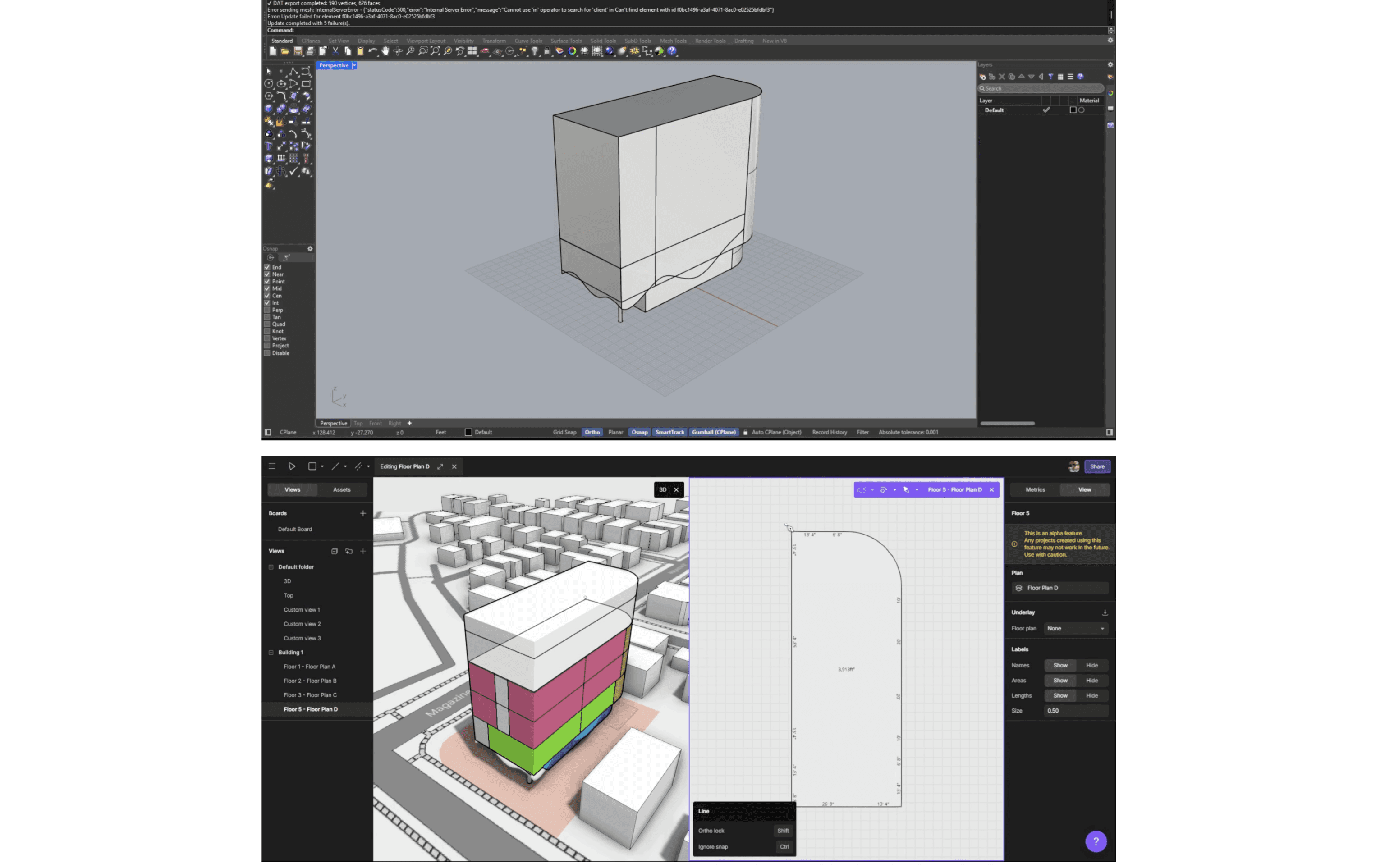

Rhino streaming
Stream your Rhino model into Arcol and get floor plans, real-time metrics, and presentation-ready output — all connected, all live, all without a single script.

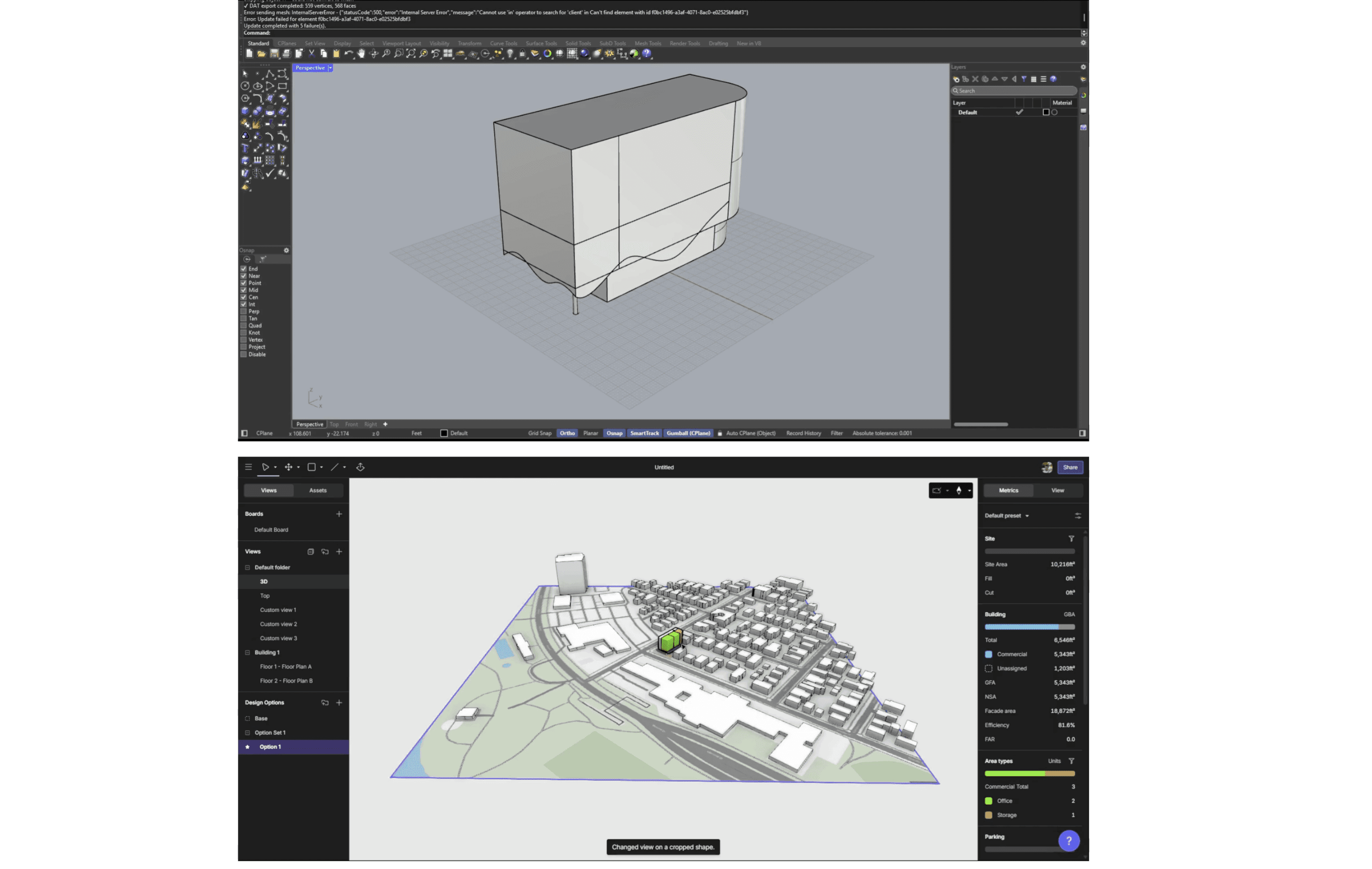

Built for any geometry
Complex massing. Imperfect surfaces. Inherited models from previous phases. Arcol handles your Rhino geometry as it actually is and it just works.

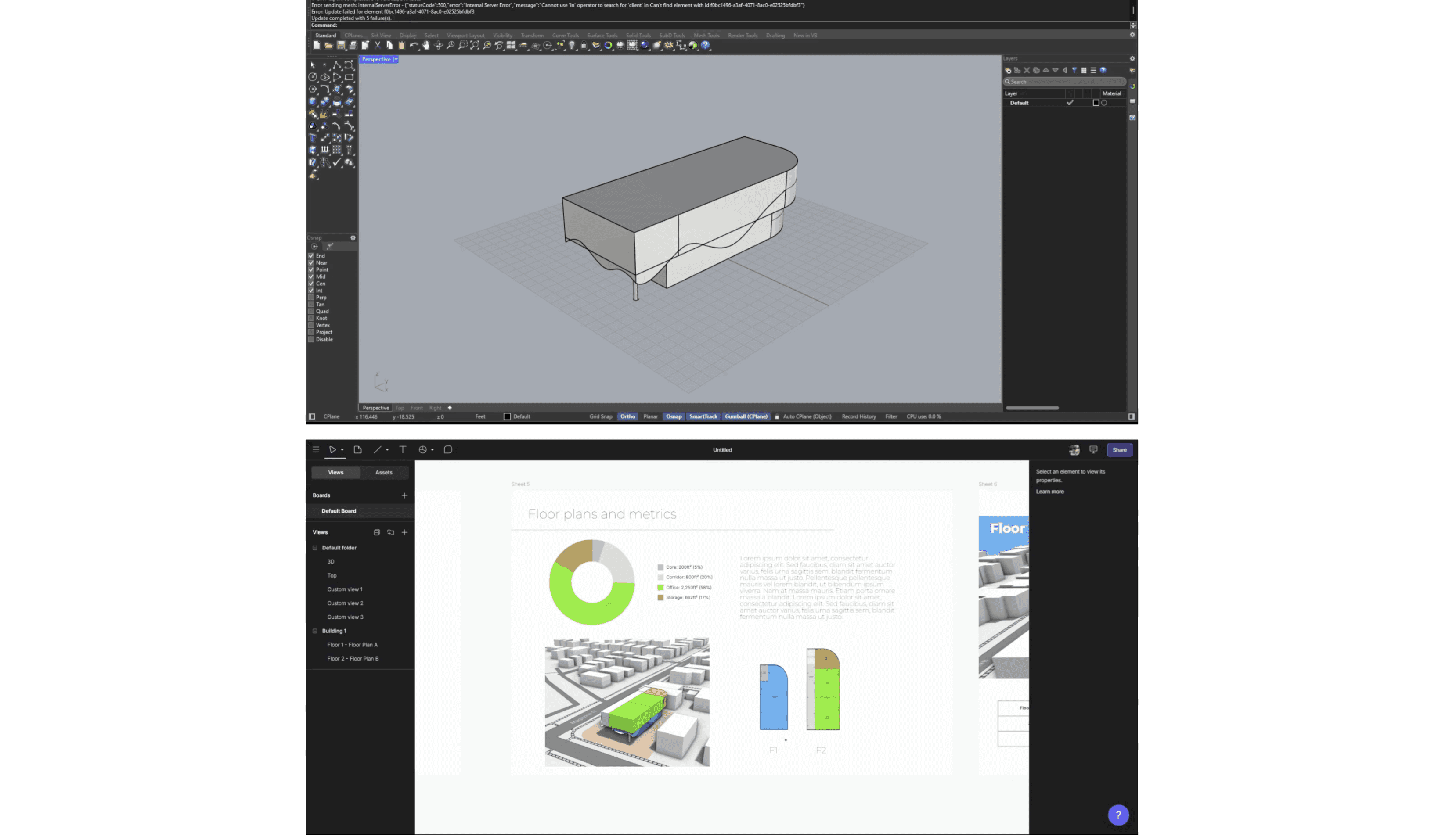

A workflow your whole firm can run
Every project follows the same connected path. Rhino to Arcol gives you live floor plans, metrics and presentations. No more stitching together Grasshopper, Excel, and InDesign after every iteration.
